1、Advantages of Traditional Cascade Control Technology


(1)Improved control accuracy: Cascade control maintains a more stable control environment. Multi-stage adjustment helps eliminate false temperature fluctuations in the temperature control system, thereby enhancing control accuracy.


(2)Faster response speed: With the collaboration of multiple controllers, cascade control can respond more quickly to temperature changes. The controllers can quickly transfer temperature information, allowing the entire temperature control system to react swiftly to temperature variations, effectively shortening process time and achieving energy savings and cost reduction.


(3)Enhanced anti-interference performance: The secondary loop in cascade control has rapid control capabilities, which can effectively mitigate the impact of disturbances entering the secondary loop. For example, errors caused by power grid fluctuations can be preemptively eliminated through cascade control.



2、Pain Points of Traditional Cascade Control Technology

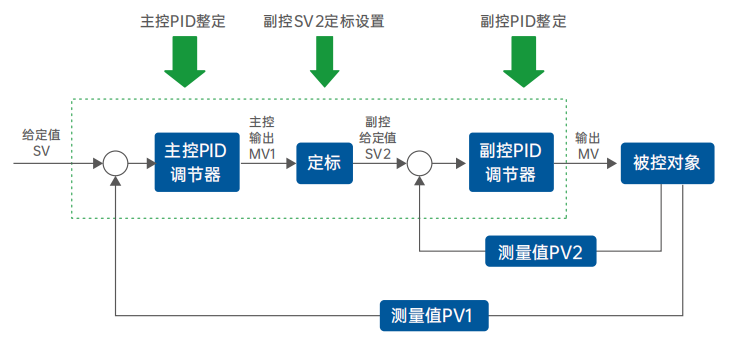

(1)Difficult debugging: Cascade control requires not only determining the main control PID parameters but also setting the calibration parameters for the secondary control set point and the secondary control PID parameters. Both the main and secondary controllers must undergo auto-tuning separately during debugging. Additionally, calibration parameters must be set appropriately, as improper calibration parameters can degrade control performance, even resulting in worse performance than a regular PID. This makes on-site testing and commissioning significantly more complex compared to standard PID controllers.


(2)Unstable performance: Traditional cascade control systems are sensitive to parameters and are prone to instability. Even when a system is tuned to satisfaction, any changes in the customer operating environment can drastically worsen the control performance.


3、Revolutionary Breakthrough of Yudian's Cascade Controller


(1)Significant simplification of debugging difficulty, lowering the usage threshold:

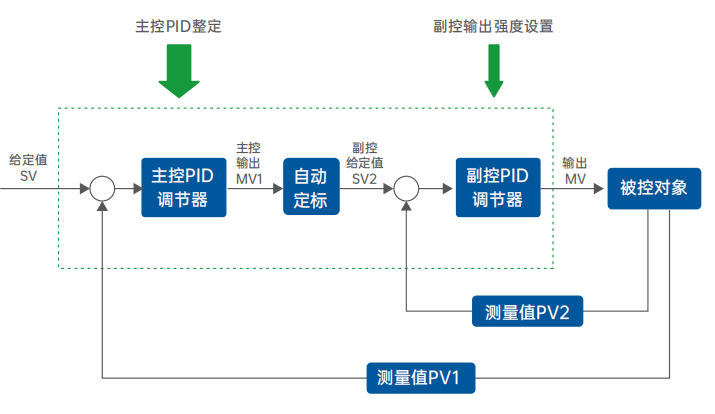

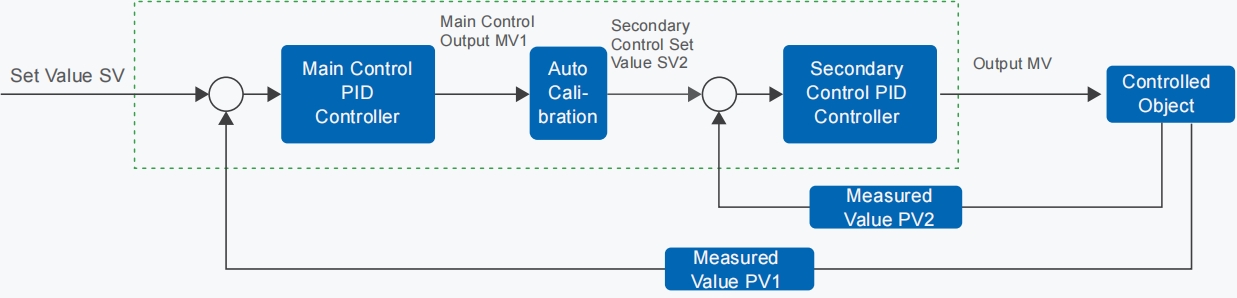

Yudian's independently developed cascade algorithm enables cascade control PID auto-tuning and intelligent calibration parameters. This greatly simplifies on-site testing and commissioning, making the previously complex cascade control debugging as simple as regular PID, significantly lowering the threshold for using high-performance cascade control.


(2)Based on automatic calibration and adaptive technology, excellent control performance:

Leveraging the newly developed cascade control automatic calibration and adaptive technology, the system can maintain excellent control performance even when external environments or customer equipment change.


(3)More flexible design, further enhancing temperature control levels:

Yudian's cascade temperature controller reduces the complexity and threshold of using cascade control, providing greater flexibility for customer engineers during design, and helping clients improve their temperature control capabilities.


(4)Multi-loop design, higher cost-effectiveness:

The new generation of Yudian cascade temperature controllers adopts a multi-loop design, further saving installation space, reducing costs, and offering higher cost-effectiveness.
